6000W Pure Sine Wave Inverter Charger

LPT series 6000W

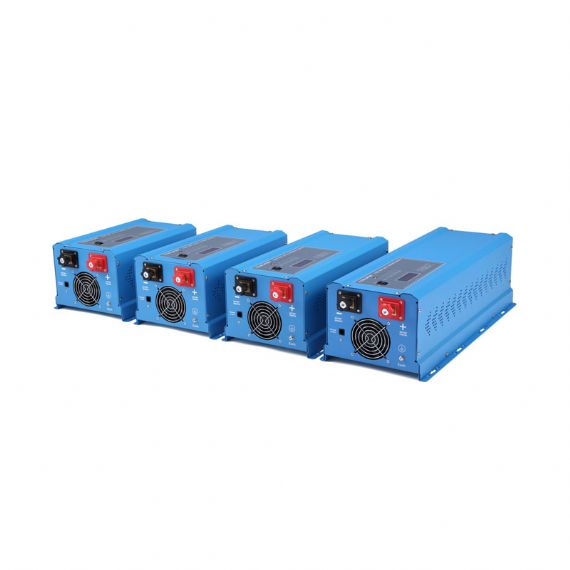

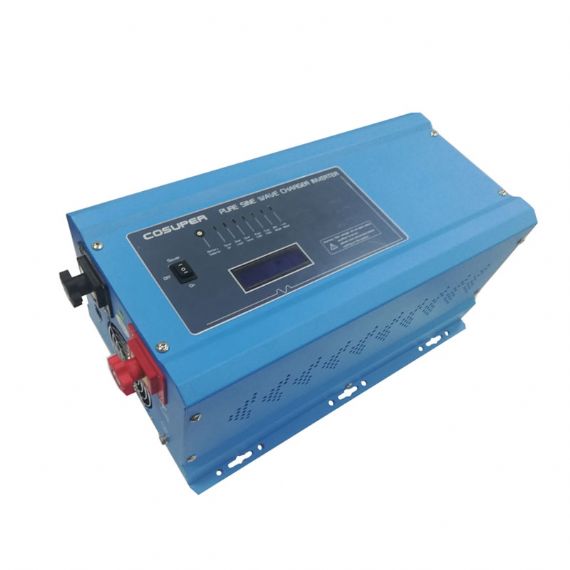

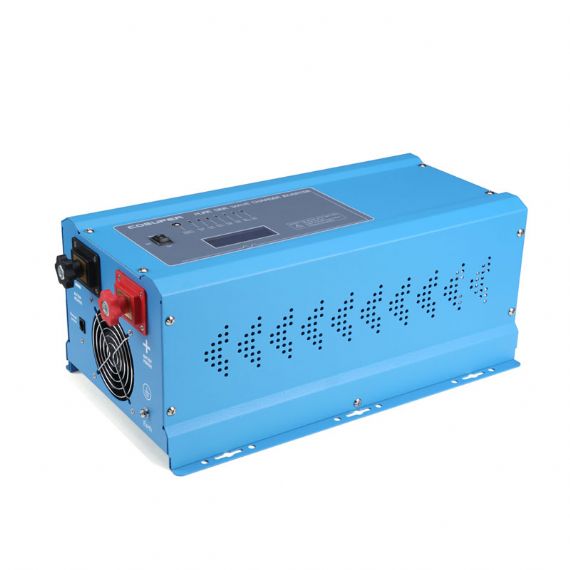

6000W Pure Sine Wave Inverter Charger - LPT6000

Sample Title

Sample Text

6000W Pure Sine Wave Inverter Charger - LPT6000

Sample Title

Sample Text

6000W Pure Sine Wave Inverter Charger - LPT6000

Sample Title

Sample Text

6000W Pure Sine Wave Inverter Charger - LPT6000

Sample Title

Sample Text

  1. 6000W Pure Sine Wave Inverter Charger - LPT6000
  2. 6000W Pure Sine Wave Inverter Charger - LPT6000
  3. 6000W Pure Sine Wave Inverter Charger - LPT6000
  4. 6000W Pure Sine Wave Inverter Charger - LPT6000
Ref: LPT6000
● DC input voltage: 24v/48v

● AC output: 100-120v/210v-250v

● Peak power: 18000w

● Waveform: Pure Sine Wave

● Product description: low frequency single phase 6000w pure sine wave inverter charger 24v 48v dc to ac 110v 120v 220v 230v 240v power inverter 6kw
Would you like to know more?
Wholesale Enquiry

Features

Features

● Pure sine wave output, input & output fully isolation
● AC charger with 4-stage charge mode, up to 75A
● High-efficiency design up to 88%, energy-saving mode
● Excellent loads with 3*rated start power
● 7 LED display shows the work and charging station
● The built-in LCD display, shows data of working
● Built-in AC bypass relay, UPS function
● Advanced microprocessor control
● Input polarity/UVP/OVP/OSP/OLP/OTP

● Remote control RJ11

Specification

Models LPT6000-124 LPT6000-148 LPT6000-224 LPT6000-248
Output Power 6000W
Surge Power 18000W
DC Input Voltage 24VDC 48VDC 24VDC 48VDC
Output Voltage 100/110/120VAC±5% 220/230/240VAC±3%
Output Frequency 50/60Hz±0.5%
Output Waveform True sine wave(THD<5%)
Power Factor 0.1~1
Efficiency 86% 88% 87% 90%
No Load Power <55W(Power saving mode)
Transfer Time <8ms
AC Range 90~135VAC/190~245VAC
Voltage Range 20.0~31.0VDC 42.0~62.0VDC 20.0~31.0VDC 42.0~62.0VDC
Charge Current 65A 35A 70A 40A
Fault Indication LED Red
Remote Control PTM-10
Safety UL458 LVD(EN60950)
EMC FCCPart15ClassA CE(EN55022:2006+A1:2007)
OperatingTemp -20~50℃
Working Humidity 20~90%RH
Storage Temp -30~70℃
Cooling Automatically controlled coolingfan
Weight(kg) 46
Size(mm) 670*255*185(L*W*H)
Application

Solar power systems, Portable equipments ,Power tools,Home and Office appliances
