5000W Pure Sine Wave Inverter Charger

CPT series 5000W

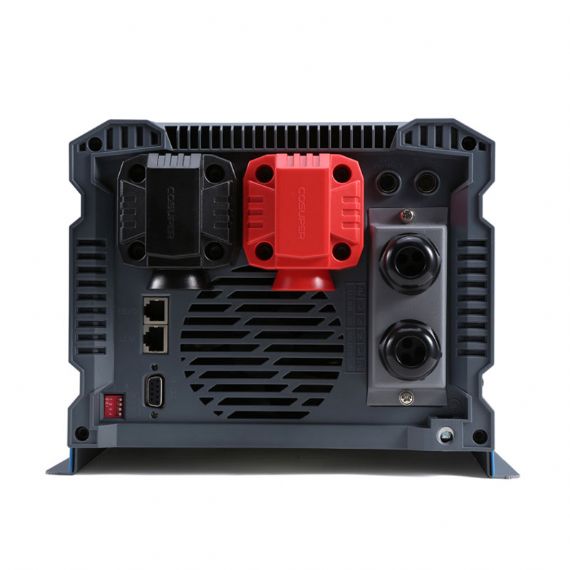

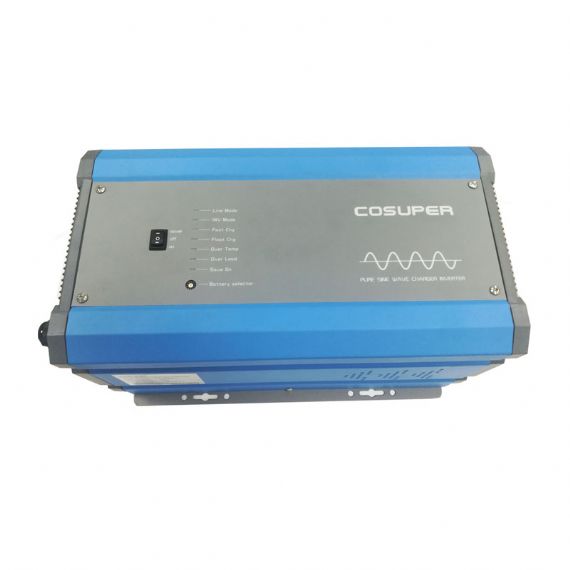

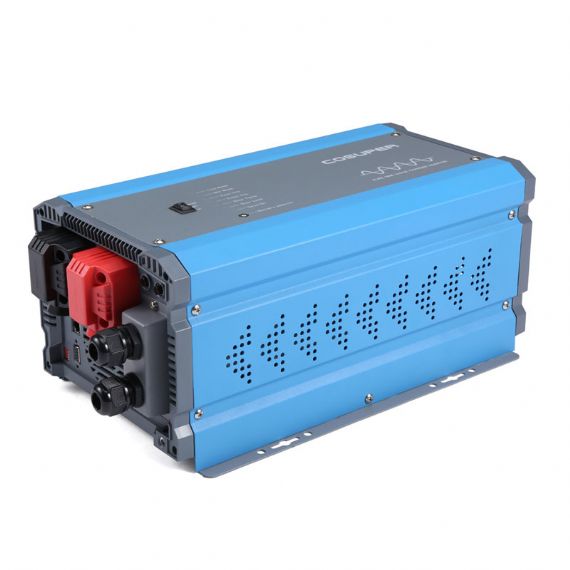

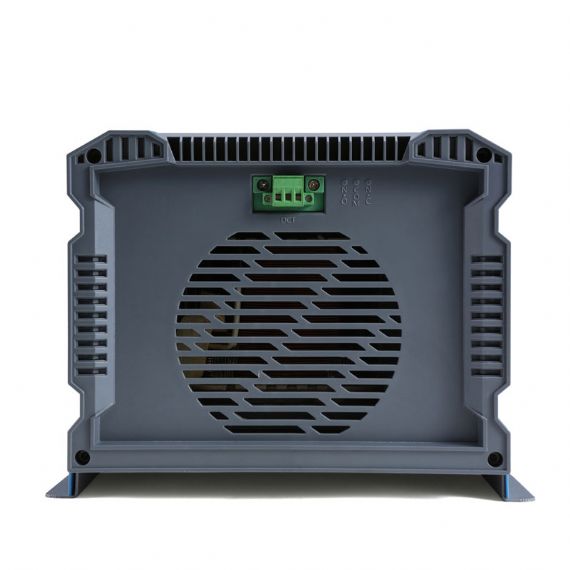

5000W Pure Sine Wave Inverter Charger - CPT5K

Sample Title

Sample Text

5000W Pure Sine Wave Inverter Charger - CPT5K

Sample Title

Sample Text

5000W Pure Sine Wave Inverter Charger - CPT5K

Sample Title

Sample Text

5000W Pure Sine Wave Inverter Charger - CPT5K

Sample Title

Sample Text

  1. 5000W Pure Sine Wave Inverter Charger - CPT5K
  2. 5000W Pure Sine Wave Inverter Charger - CPT5K
  3. 5000W Pure Sine Wave Inverter Charger - CPT5K
  4. 5000W Pure Sine Wave Inverter Charger - CPT5K
Ref: CPT5K
● DC input voltage:24v/48v

● AC output:100-120v/210v-250v

● Peak power:15000w

● Waveform:pure sine wave(THD<5%)

● Product description:CPT series 5000w pure sine wave inverter charger 24v 48v dc to ac 100v 110v 120v 220v 230v 240v power inverter 5kw
Would you like to know more?
Wholesale Enquiry

Features

With the pure sine wave output, no matter coffee machine, microwave, TV, satellite, printer, or other equipment, the CPT inverter charger gives the perfect performance for running loads from household appliances to office devices.
Lithium battery compatibility gives another option for the house battery. Batteries are charged quickly and safely by the input utility power or vehicle generator. The automatic protect function ensures the battery banks from being over-discharged/charged. The CPT inverter charger guarantees the interrupted power supply with an auto transfer switch.

Product Features:
  • Approved by ETL under UL458 and CSA C22.2, CE under EN55022:2006+A1:2007 standards
  • Pure sine wave output runs all loads from household appliances to office equipment.
  • Built-in three-stage battery charger with the compatibility of Lithium/Gel/AGM/Wet battery
  • recharges most batteries quickly while preventing them from being overcharged
  • Internal transfer switch transfers between DC power and utility power
  • External LCD remote controller-PTM12 or re-programmable interactive monitor control system
  • CR80 for easy data read and better references
  • Gen starter gives boost signal to start back up generator for an emergency.
  • Tool-free battery connection terminal for easy installation and DC short-circuit defending.
  • 18 months warranty
Protection
  • Input AC over-voltage and low voltage protection
  • Battery DC over voltage and low voltage protection
  • Short circuit protection
  • Over-temperature protection
  • Overload protection

Specification


Models CPT5000
output power 5000W
SurgePower 15000W
DCInputVoltage 24VDC/48VDC
OutputVoltage

100/110/120VAC±5%;220/230/240VAC±3%;

120/240VACSplitphase

OutputFrequency 50/60Hz±0.5%
OutputWaveform pure sinewave(THD<5%)
Idleconsumption(Savingmodel/workingmodel) 9W/25W
AC input frequency 50/60Hz±0.5%
Efficiency 110vac 86%
230VAC 87%
transfer time <8ms
ACInputRange 90~135VAC/190~245VAC
DCVoltageRange 20.0-31.0/42.0-62.0VDC
ACCharger/Bypass
DCoutputvoltage Bulk(13.0-14.9V);Absorption(14.9-15.1V);
Floatcharge(13.3-13.8V)(24V*2,48V*4)
Overcharge protection 15.7VDC(24V*2,48V*4)
Chargecurrent 110VAC 70A/40A
230VAC 70A/40A
Transfer time <10ms
Inputwaveform Puresinewave(Utilitypowerorgenerator)
MAXbypasscurrent 40A
Control&Signal
LED indicator 7-ledforworkingmode
Remotecontrol(optional) CR10;PTM-12
Dipswitch Chargecurrent;Outputfrequency;ACoutputvoltage;DC/ACpriority
Networkfunction Stand-alone,orTCP/IPoptional
Batterytype Lithium,Gel,AGM,Wetorcustomized
Drycontactterminal Byrelay
GeneralSpecification
Safety UL458,LVD(EN60950)
EMC FCCpart15ClassA,CE(EN55022:2006+A1:2007)
Operating/Storagetemp -20-50℃/-30-70℃
Working humidity -20-90%RH
Weight(Kg/Ib) 43/95
Dimension(mm/inch) 650*250*185/26*10*7
Application Thevehicle,Yacht,Solarpowersystems,Portableequipment,
Powertools,HomeandOfficeappliances
