Features

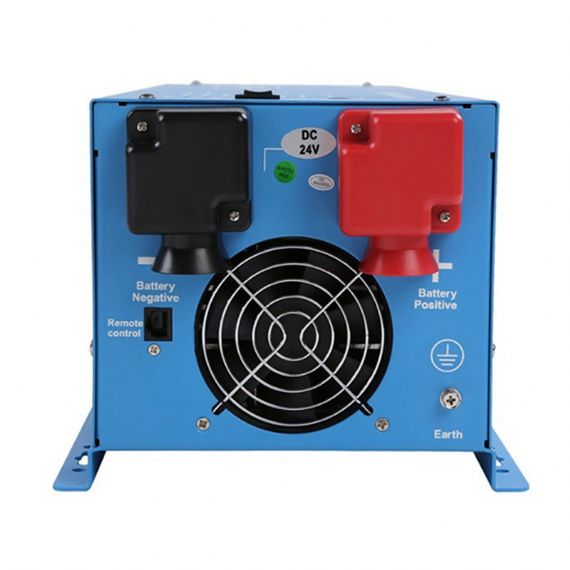

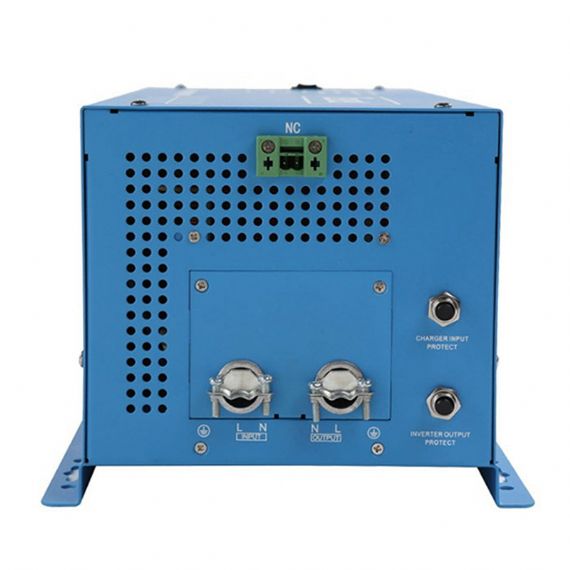

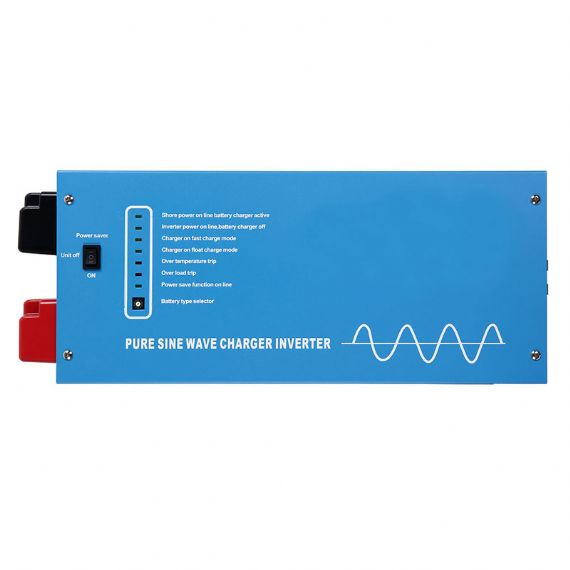

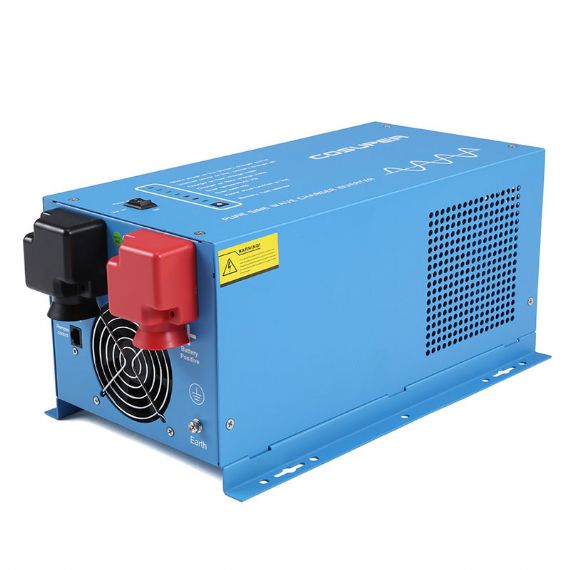

SPT series pure sine wave inverter is a combination of an inverter, battery charger, and AC auto-transfer switch into one complete system with a peak conversion efficiency of 88%
SPT series pure sine wave inverter is suitable for renewable energy systems, utility, RV, Marine, and Emergency appliances.
the inverter can be easily customized to Battery priority via a DIP switch, this helps to extract maximum power from the battery in a renewable energy system.
Features:
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
●Start Auto restart while AC is recovering, Dry contact: out no AC signal to other devices
●Pure sine wave output, input & output fully isolation Three-gear switch
●Includes 4-stage AC battery charger, charging current up to 90A
●Efficiency can reach above 88%, energy-saving mode, extend the working hours of battery
●Can be paired with electric, diesel hybrid power supply
●Tolerance 3 times rated power to start, the carrying capacity of excellence
●Advanced microprocessor control system design
●Input polarity/UV/OV/OS/OL/OT protections
●Remote control RJ45 or RS-232 communication interface (optional)
Specification:
Rated power: 1000w / 1500w
Peak power: 3000w / 4500W
DC voltage: 12VDC/24VDC/48VDC
Output Voltage: 100/110/120VAC±5%;220/230/240VAC±3%
Output Frequency: 50/60Hz ±0.5%
Output Waveform: True sine wave THD<5%
Efficiency: 86%-87%
Transfer Time: <8 ms
Remote Control: RJ11
weight(kg): 15
Size(mm): 415*220*180 (L*W*H)(1000w size)
Size(mm): 514*256*187 (L*W*H)(1500w size)
