SCH BP Inverter

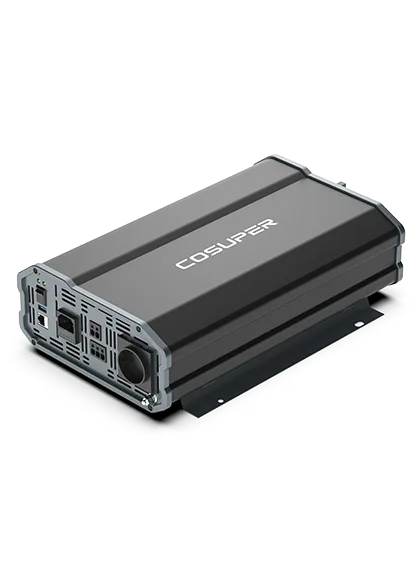

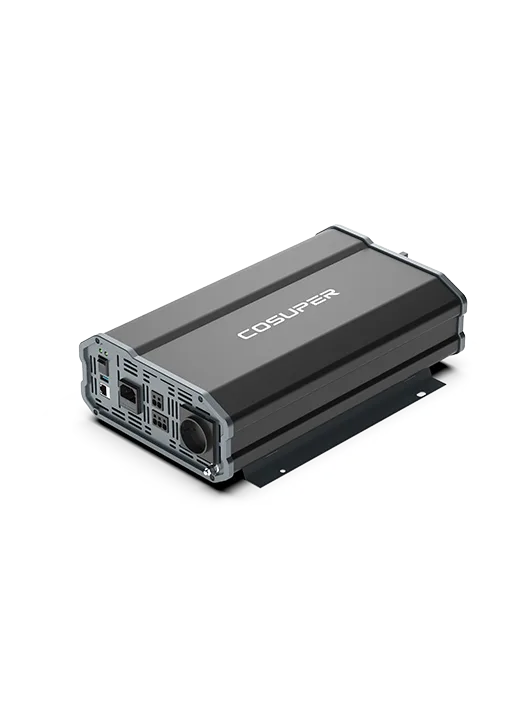

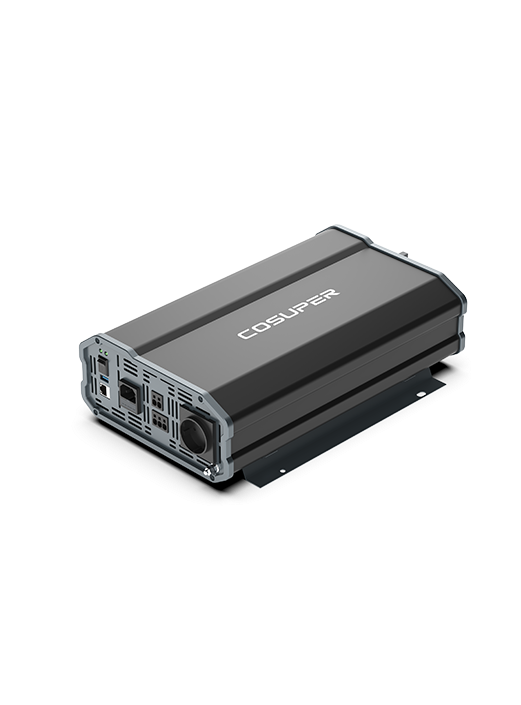

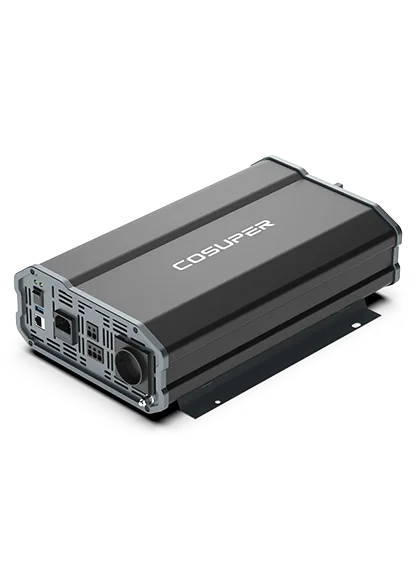

The SCH BP Inverter provides pure sine wave output with an AC bypass function, making it suitable for RVs and sensitive appliances. With high overload capacity, external LED remote control, independent cooling and up to 93% conversion efficiency, it delivers stable power from home devices to office equipment.

Request a Quote

Advantages

01 Pure Sine Wave Output

02 High Surge Capability

03 AC Bypass Function

04 Up to 93% Efficiency

05 Remote Control Ready

06 Comprehensive Safety Protection

Technical Specifications

SCH BP Inverter

SCH1000

Output Power	1000W
Surge Power	2000W
Standby Power	9W
DC Input Voltage	12/24/48
Output Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.05%
Output Waveform	Pure sine wave
Efficiency (110V)	92%
Efficiency (230V)	93%
Operating Temperature	-10 ~45°C
Storage Temperature	30 - 70°C
Weight (kg)	3.2
Dimensions (mm)	376x254x119

SCH1500

Output Power	1500W
Surge Power	3000W
DC Input Voltage	12/24/48
Output Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.05%
Output Waveform	Pure sine wave
Efficiency (110V)	92%
Efficiency (230V)	93%
Operating Temperature	-10 ~45°C
Storage Temperature	-30 - 70°C
Weight (kg	3.5
Dimensions (mm)	416x254x119

SCH2000

Output Power	2000W
Surge Power	4000W
DC Input Voltage	12/24/48
Output Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
Output Frequency	50/60Hz ±0.05%
Output Waveform	Pure sine wave
AC Input Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
AC Input Frequency	50/60Hz ±0.05%
Efficiency (230V)	93%
Operating Temperature	-10~45°C
Storage Temperature	-30 - 70°C
Weight (kg)	4.6
Dimensions (mm)	457.5x254x119

SCH3000

Output Power	3000W
Surge Power	6000W
DC Input Voltage	12/24/48
Output Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
Output Waveform	Pure sine wave
AC Input Voltage	100/110/120VAC ±3%; 220/230/240VAC ±5%
AC Input Frequency	50/60Hz ±0.05%
Efficiency (110V)	92%
Efficiency (230V)	93%
Operating Temperature	-10~ 45°C
Storage Temperature	-30 ~70°C
Weight (kg)	5.8
Dimensions (mm)	572x254x119
