Features
CCH Series Pro-Power Sine Wave Inverter
Pro DC-AC Solution
Max. 2000VA pure sine wave power @ 50°C
2000VA continuous output
Even under extreme conditions, the power
inverter from the CCH series operates faultlessly. Keep you always stay with the
round-the-clock power when necessary.
The standout performance at 50°C high temperature
brings reliable power supply no matter in RV, camper van, caravan, special
purpose vehicle, or any mobile power system.
The CCH ProPower inverter is designed with CANbus for various
AC output requirements or any other customized battery systems for better interactive control with the mobile power system. Choosing this
independent sine wave inverter allows you complete freedom of choice of battery
charging equipment.
Features:
Heavy duty design for professional and
semi-professional applications
Full capacity at temperatures up to 50°C
Pure sine wave output prevents failures and
damage to sensitive equipment
High peak capacity for seamless switching
on of complex and heavy loads
CANbus compatible, customize for parameters
setting
Suitable for mobile applications
Worldwide outlets compatible
Protection:
Over / Low DC input voltage (allows
parameters set by the external)
Output overload protection (allows
parameters set by the external)
Output short circuit protection
Over-temperature protection
Specification:
|

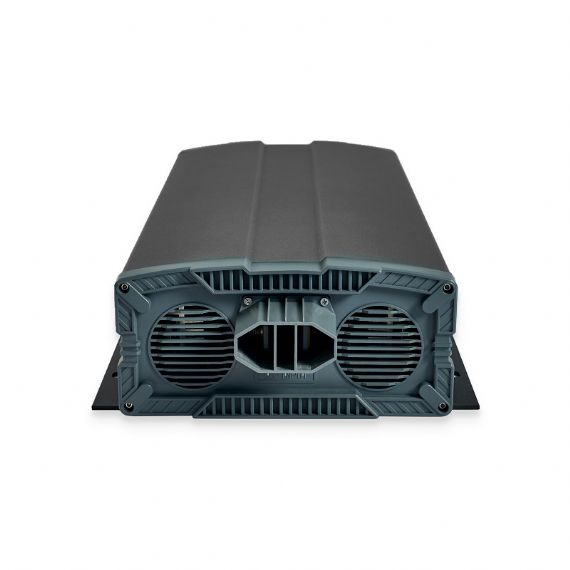

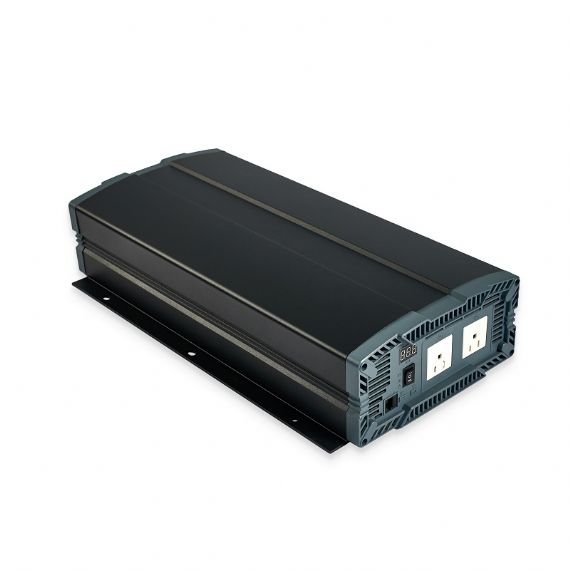

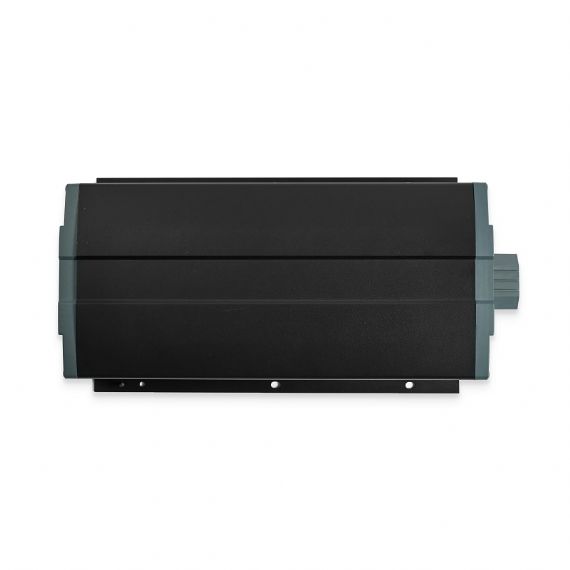

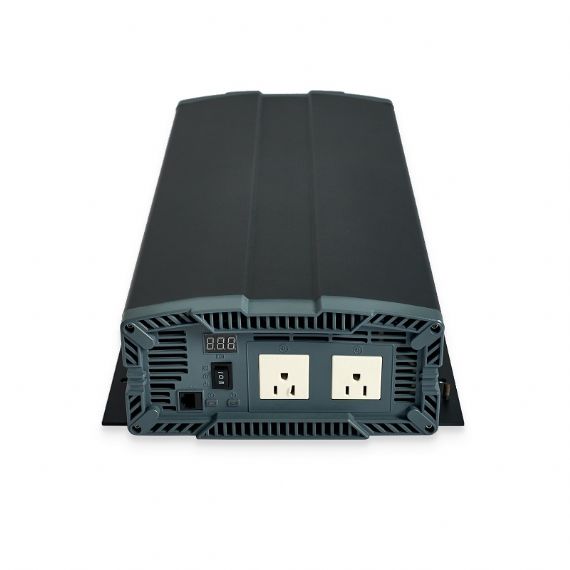

CCH3000 |
|
Rated Power |
3000
W |
|
Continuous power @ 50 °C |
3000
W |
|
Peak
power |
6000
W |
|
AC
Output |
|
Output voltage |
110
V / 220 V (±5%); |
|
220
V / 230 V (±3%) |
|
Output
frequency |
50
Hz / 60 Hz (± 0.01 Hz) |
|
E_ciency |
92% |
|
Display |
LED
voltage meter |
|
high
battery voltage on @ |
11.5
VDC ± 0.3 VDC |
|
Max.
ripple on DC (battery) |
5%
RMS |
|
Input
current (nominal load) |
250
A |
|
No-load
consumption |
6
W |
|
Minimal
DC fuse (slow blow) |
300
A |
|
Minimal
cable size |
70
mm2 |
|
Harmonic
distortion typical |
5% |
|
Cos
physical |
all
power factors allowed |
|
DC Input |
|
Rated
DC level |
12.0
VDC (10.5~16.0 VDC) |
|
Low
battery voltage off @ |
10.5
VDC ± 0.3 VDC |
|
Low
battery voltage recovery @ |
11.5
VDC ± 0.3 VDC |
|
High
battery voltage off @ |
16.5
VDC ± 0.3 VDC |
|
High
battery voltage recovery @ |
16.0
VDC ± 0.3 VDC |
|
Recommended
battery capacity |
>
250 Ah |
|
General |
|
Working
temperature |
-10~50℃ |
|
Storage
temperature |
-15~55℃ |
|
Working
humidity |
0-90%
no condensation |
|
Dimension
(W*D*H) |
425*270*106
mm |
|
Communication |
CANbus |
