8000W Intelligent Hybrid Inverter with MPPT

CPS series 8000W

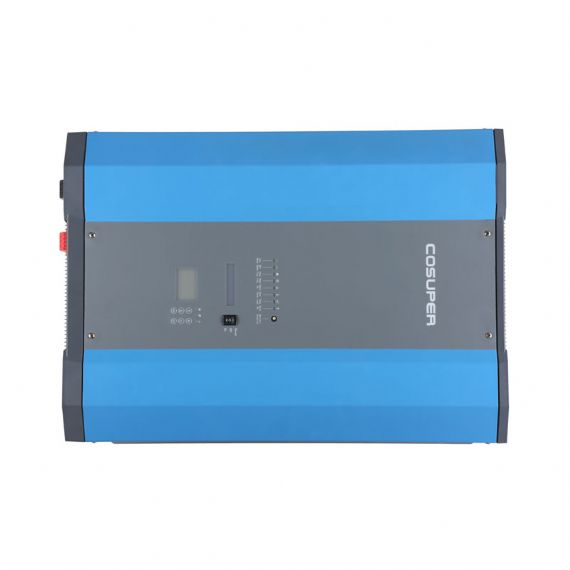

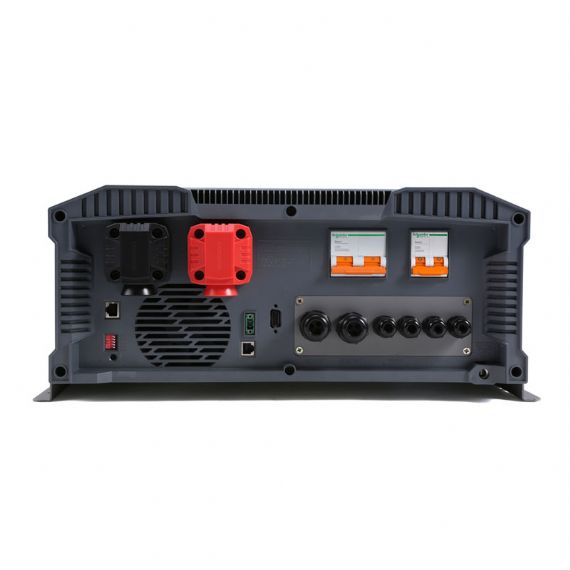

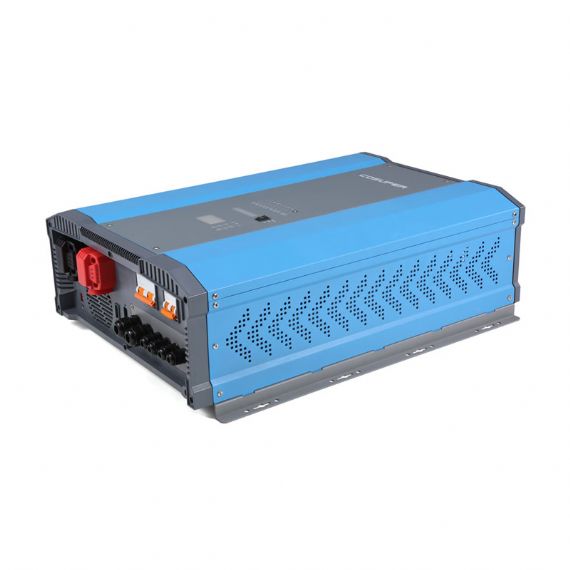

8000W Intelligent Hybrid Inverter with MPPT - CPS8K

Sample Title

Sample Text

8000W Intelligent Hybrid Inverter with MPPT - CPS8K

Sample Title

Sample Text

8000W Intelligent Hybrid Inverter with MPPT - CPS8K

Sample Title

Sample Text

  1. 8000W Intelligent Hybrid Inverter with MPPT - CPS8K
  2. 8000W Intelligent Hybrid Inverter with MPPT - CPS8K
  3. 8000W Intelligent Hybrid Inverter with MPPT - CPS8K
Ref: CPS8K
● DC input voltage: 24v/48v

● AC output: 100-120v/210v-250v

● Peak power: 24000w

● Waveform: Pure Sine Wave

● Product description: CPS series 8000w Intelligent Hybrid Inverter with built-in mppt solar charge controller, 48v dc to ac 100v 110v 120v 220v 230v 240v solar inverter 8kw
Would you like to know more?
Wholesale Enquiry

Features

Features
● Professional solution for Off-Grid solar system
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
● Real MPPT solar charge controller. MAX PV volt 150VDC. MAX PV power 4680W
● DIP Switches: Low Battery, AC Input Range, Power Saver, Solar/Utility AC Priority
● Efficient up 3~5% than traditional power frequency inverter
● Visualized and detailed info on solar charging and inverting
● RJ45 Remote control and RS232 network communication interface (optional)
● Excellent load capacity: MAX 3*rated power.
● Pure sine wave output, input & output fully isolation
● Supply power via hybrid power (grid power or diesel) compatibly
● Built-in relay and AC/DC breaker
● Advanced microprocessor control
● Input polarity/UVP/OVP/OSP/OLP/OTP

● Attractive appearance with V0 fire-protection rated plastic materials

Specification

Item Models CPS8000-2484M CPS8000-2486M CPS8000-2489M
AS OUTPUT output power 8000W
SurgePower 24000W(≤2S)
output frequency 50/60Hz±0.5%
OutputWaveform Truesinewave(THD<3%)
P·FAllowed COSθ-90°~COSθ+90°
Efficiency 90%
DCINPUT input voltage 48VDC
voltage range 40.0~62.0VDC/42.0~64.0VDC
FaultIndication LEDRedandBuzzerAlarm
RemoteControl RS-232/RJ45(Optional)
AC charger range 184-253VAC/154-253VAC
100-135VAC/90-135VAC
FastVoltage 56.0~60.4V
FloatVoltage 53.2-55.2V
OverchargeProtection 62.8Vfor48V
ChargeCurrent 55A
MPPTSolarCharger(optional) solarpanelMax 2340W 3120W 4680W
RatedVoltage 12V/24V248VDCAuto
Ratedchargecurrent 45A 60A 90A
DCLoadCurrent 15A(MAX)
InputPVVoltage 150VDC(MAX)
Temp.compensation -13.2mv/℃(*2for24vdc,*4for48vdc)
Bypass transfer time <8ms
InputVot.waveform UtilityACorGenerator(Sinewave)
Maxbypasscurrent 80A/40A
Others WorkingHumidity 20-90%RH
SafetyandEMI UL458 LVD(EN60950)
Working temp. -20~50℃
StorageTemp -30~70℃
Cooling Temperaturecontrolledcoolingfan
Size(mm) 650*505*210(L*W*H)
Weight(kg) 70 73
