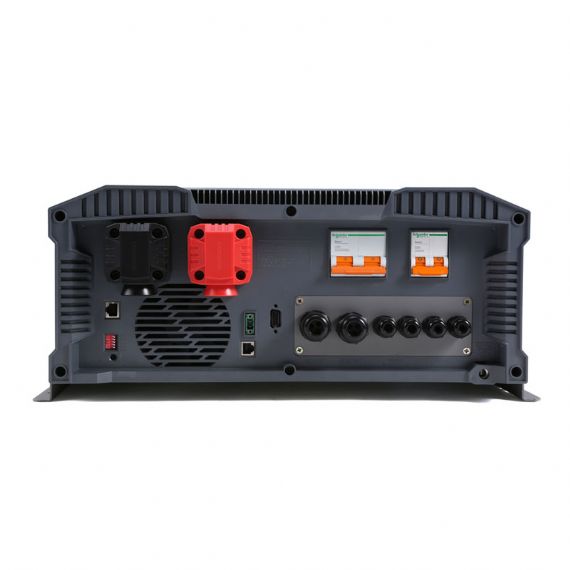

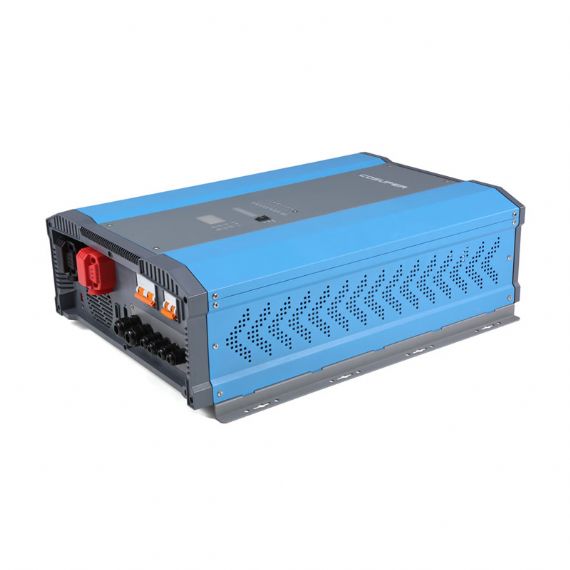

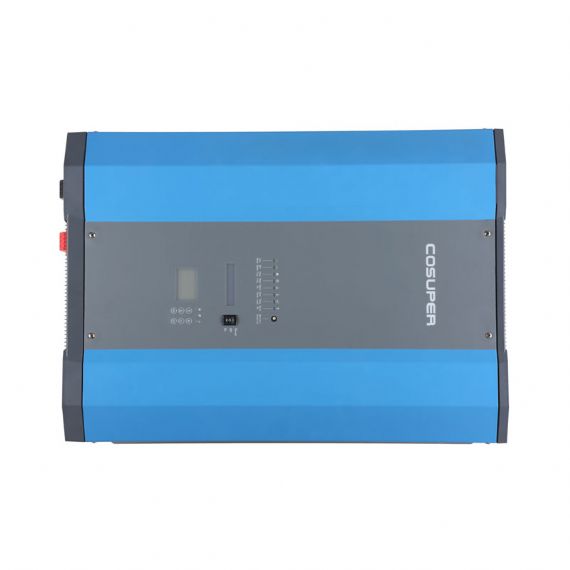

CPS series 5000W
Features
● Professional solution for Off-Grid solar system
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger, and UPS
● Real MPPT solar charge controller. MAX PV volt 150VDC. MAX PV power 4680W
● DIP Switches: Low Battery, AC Input Range, Power Saver, Solar/Utility AC Priority
● Efficient up 3~5% than traditional power frequency inverter
● Visualized and detailed info on solar charging and inverting
● RJ45 Remote control and RS232 network communication interface (optional)
● Excellent load capacity: MAX 3*rated power.
● Pure sine wave output, input & output fully isolation
● Supply power via hybrid power (grid power or diesel) compatibly
● Built-in relay and AC/DC breaker
● Advanced microprocessor control
● Input polarity/UVP/OVP/OSP/OLP/OTP
● Attractive appearance with V0 fire-protection rated plastic materials
Specification
| MODELS | CPS5000-2246M | CPS5000-2484/6 | CPS5000-2489M |
|---|---|---|---|
| Output Power | 5000W | ||
| Surge Power | 15000W(≤2S) | ||
| Output Frequency | 50/60Hz±0.5% | ||
| Output Waveform | True sine wave(THD<3%) | ||
| P·F Allowed | COSθ-90°~COSθ+90° | ||
| Efficiency | 90% | ||
| Input Voltage | 24VD | 48VDC | |
| Voltage Range | 20.0~31.0VDC,*2for48VDC/21.0~32.0VDC,*2for48VDC | ||
| Fault Indication | LEDRedandBuzzerAlarm | ||
| Remote Control | RS-232/RJ45(Optional) | ||
| AC Range | 184-253VAC/154-253VAC; 100-135VAC/90-135VAC | ||
| Fast Voltage | 28.0~30.2V | 56.0~60.4V | |
| Float Voltage | 26.6-27.6V | 53.2-55.2V | |
| Overcharge Protection | 31.4Vfor24V | 62.8Vfor48V | |
| Charge Current | 35A | ||
| Solar panel Max | 1680W | 2340W/3120W | 4680W |
| Rated Voltage | 48VDC | ||
| Rated charge current | 60A | 45A/60A | 90A |
| DC Load Current | 15A(MAX) | ||
| Input PV Voltage | 150VDC(MAX) | ||
| Temp.compensation | -13.2mv/℃(*2for24vdc,*4for48vdc) | ||
| Transfer Time | <8ms | ||
| InputVot.waveform | UtilityACorGenerator(Sinewave) | ||
| Max bypass current | 80A/40A | ||
| Working Humidity | 20-90%RH | ||
| Safety and EMI | UL458 | LVD(EN60950) | |
| Working temp. | -20~50℃ | ||
| StorageTemp | -30~70℃ | ||

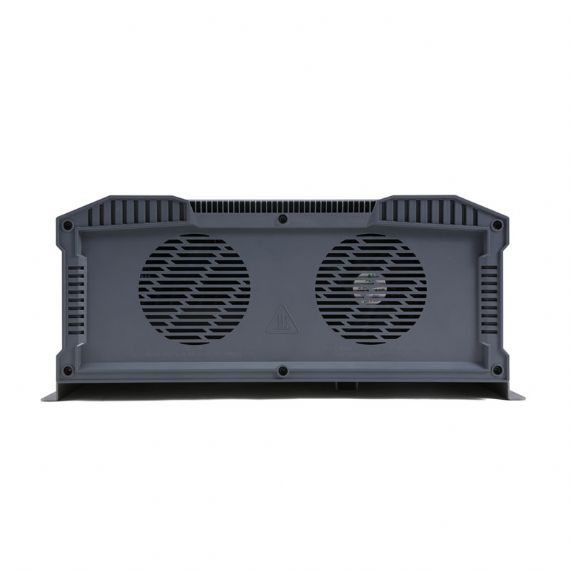

| Cooling | Temperaturecontrolledcoolingfan | ||
| Size(mm) | 650*505*210(L*W*H) | ||
| Weight(kg) | 55 | 58 | |
