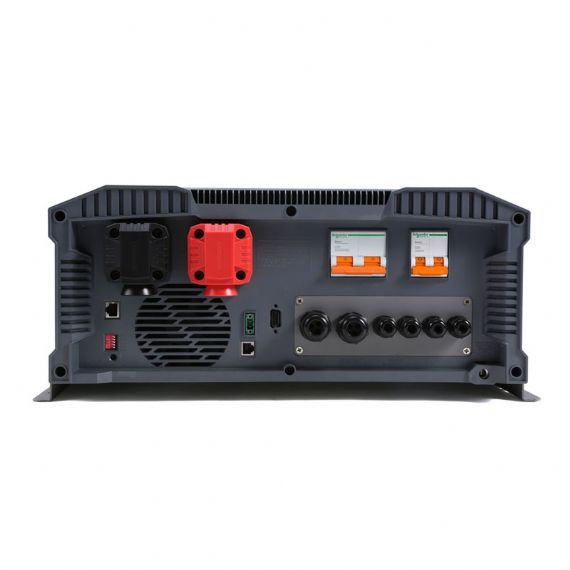

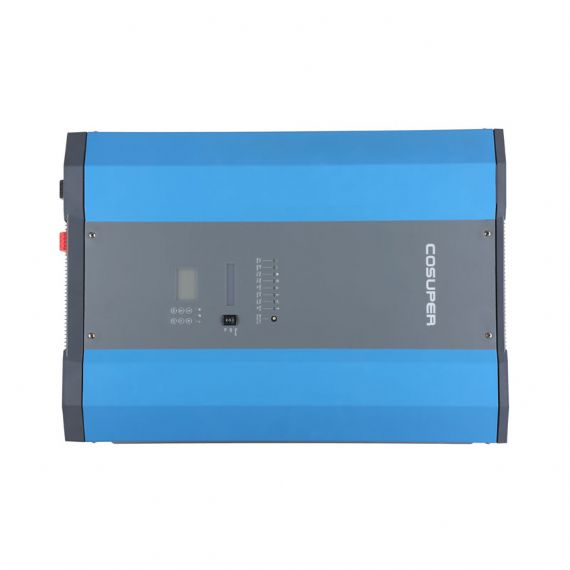

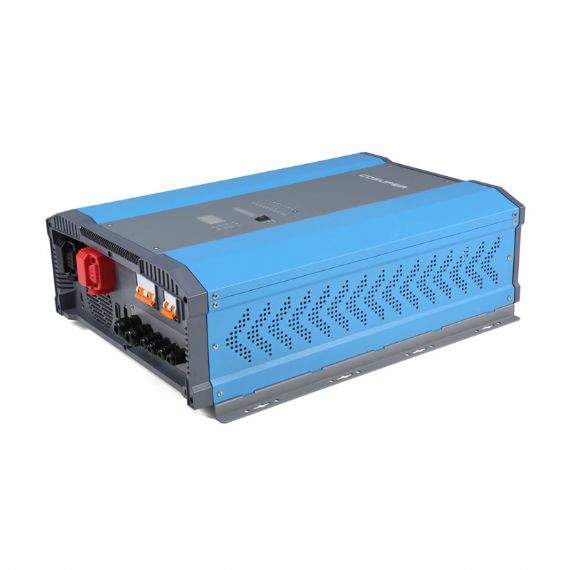

CPS 3000W
Features
Specification
| Item | Models | CPS3000-1244/6 | CPS3000-1484/6 | CPS3000-2244/6 | CPS3000-2484/6 |
| ACOUTPUT | Output Power | 3000W | |||
| SurgePower | 9000W(≤2S) | ||||
| OutputFrequency | 50/60Hz±0.5% | ||||
| OutputWaveform | Truesinewave(THD<3%) | ||||
| P·FAllowed | COSθ-90°~COSθ+90° | ||||
| Efficiency | 86% | 88% | 87% | 90% | |
| DCINPUT | InputVoltage | 24VDC | 48VDC | 24VDC | 48VDC |
| Voltage Range | 20.0~31.0VDC,*2for48VDC/21.0~32.0VDC,*2for48VDC | ||||
| FaultIndication | LEDRedandBuzzerAlarm | ||||
| RemoteControl | RS-232/RJ45(Optional) | ||||
| AC Charger | AC Range | 184-253VAC/154-253VAC | |||
| 100-135VAC/90-135VAC | |||||
| FastVoltage | 14.0~15.1V(*2for24vdc,*4for48vdc) | ||||
| FloatVoltage | 13.3-13.8V(*2for24vdc,*4for48vdc) | ||||
| OverchargeProtection | 15.7Vfor12V(*2for24vdc,*4for48vdc) | ||||
| ChargeCurrent | 40A | 25A | 45A | 30A | |
| MPPTSolarCharger(optional) | solar panel Max | 1260W/1680W | 2340W/3120W | 1260W/1680W | 2340W/3120W |
| RatedVoltage | 12V/24V/48VAuto | ||||
| Ratedchargecurrent | 45A/60A | 45A/60A | 45A/60A | 45A/60A | |
| DCLoadCurrent | 15A(MAX) | ||||
| InputPVVoltage | 150VDC(MAX) | ||||
| Temp.compensation | -13.2mv/℃(*2for24vdc,*4for48vdc) | ||||
| Bypass | Transfer Time | <8ms | |||
| InputVot.waveform | UtilityACorGenerator(Sinewave) | ||||
| Maxbypasscurrent | 60A/30A | ||||
| Others | WorkingHumidity | 20-90%RH | |||
| SafetyandEMI | UL458 | LVD(EN60950) | |||
| Working temp. | -20~50℃ | ||||
| StorageTemp | -30~70℃ | ||||
| Cooling | Temperaturecontrolledcoolingfan | ||||
| Size(mm) | 650*505*210(L*W*H) | ||||
| Weight(kg) | 32 | ||||
