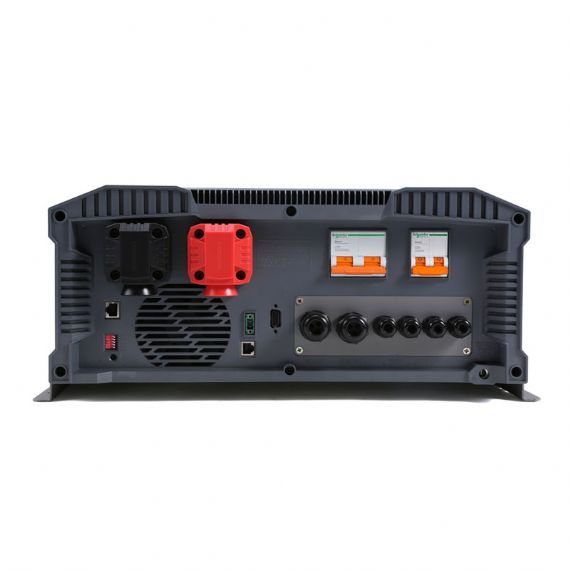

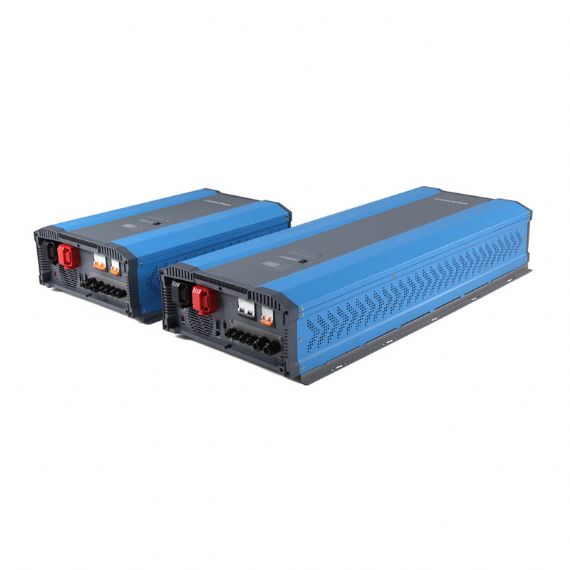

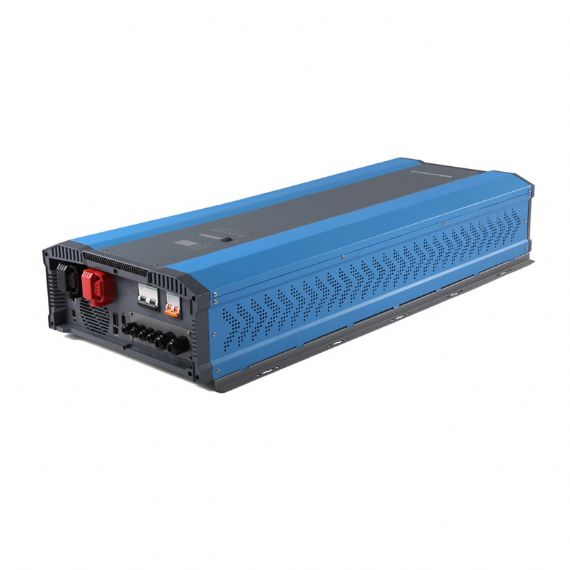

10000W Intelligent Hybrid Inverter with MPPT

Features

Features
● Professional solution for Off-Grid solar system
● Auto switch 4 FUN: DC to AC, AC bypass, AC charger and UPS
● Real MPPT solar charge controller. MAX PV volt 150VDC. MAX PV power 4680W
● DIP Switches: Low Battery, AC Input Range, Power Saver, Solar/Utility AC Priority
● Efficient up 3~5% than traditional power frequency inverter
● Visualized and detailed info of solar charging and inverting
● RJ45 Remote control and RS232 network communication interface (optional)
● Excellent load capacity: MAX 3*rated power.
● Pure sine wave output, input & output fully isolation
● Supply power via hybrid power (grid power or diesel) compatibly
● Built-in relay and AC/DC breaker
● Advanced microprocessor control
● Input polarity/UVP/OVP/OSP/OLP/OTP


● Attractive appearance with V0 Fire-protection rated plastic materials

Specification

Item	Models	CPS10000-2486M	CPS10000-2489M
AC OUTPUT	Output Power	10KW
	Surge Power	30KW(≤2S)
	Output Frequency	50/60Hz±0.5%
	Output Waveform	True sine wave(THD<3%)
	P·F Allowed	COSθ-90°~COSθ+90°
	Efficiency	90%
DC INPUT	Input Voltage	48V DC/96V DC
	Voltage Range	40.0~62.0V DC/62.0~96.0V DC
	Fault Indication	LED Red and Buzzer Alarm
	Remote Control	RS-232/RJ45(Optional)
AC Charger	AC Range	184-253V AC/154-253V AC
		100-135V AC/90-135V AC
	Fast Voltage	56.0~60.4V
	Float Voltage	53.2-55.2V
	Over charge Protection	62.8V for 48V
	Charge Current	80A
MPPT Solar Charger(optional)	solar panel Max	3120W	4680W
	Rated Voltage	12V/24V/48V DC Auto
	Rated charge current	60A	90A
	DC Load Current	15A(MAX)
	Input PV Voltage	150V DC(MAX)
	Temp.compensation	-52.8mv/℃
Bypass	Transfer Time	<8ms
	Input Vot.waveform	Utility AC or Generator(Sinewave)
	Max bypass current	80A/40A
Others	Working Humidity	20-90%RH
	Safety and EMI	UL458	LVD(EN60950)
	Working temp.	-20~50℃
	StorageTemp	-30~70℃
	Cooling	Temperature controlled cooling fan
	Size(mm)	650*505*210(L*W*H)
	Weight(kg)	75	78
