Features
CMPD SERIES MAIN FEATURES

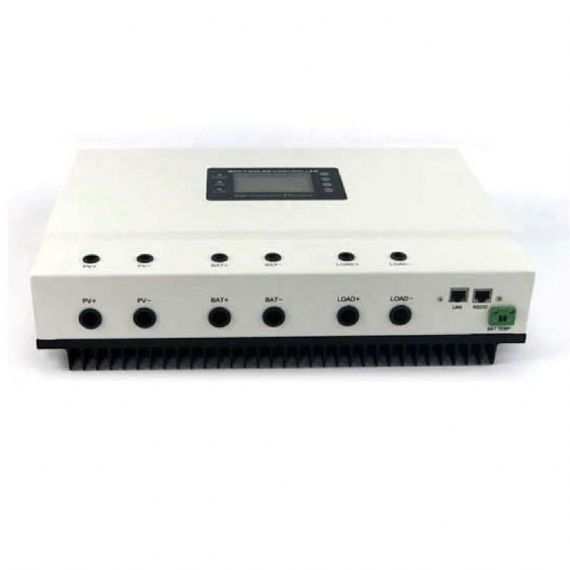

80A / 100A Charge Current COSUPER CMP80-CL & CMP100 -CL has MAX. 80A & 100Amp DC charge current even on a cloudy day. This is specifically designed for the mass battery pack to get a rapid charge with better efficiency.
>>Battery Type
These MPPT units provide the availability of set charge voltage by users. Therefore, AGM, Gel, and Open Lead acid are all workable with these MPPT solar chargers.
>>Display & Communication
With the LCD display, users are able to read all the parameters when it works. RS485 communication is available to offer communication protocol to convenient user's integrated management and secondary development.
12V, 24V, or 48V Auto work
MODELS |
CMPD-80CL |
CMPD-100CL |
CMPD-50DL-Pro Model |
SPECIFICATION |
System Voltage |
12V, 24V or 48V Auto work |
-
|
96V |
MAX. PV input Volt |
150VDC |
150VDC |
300VDC |
MAX. PV input power |
12V -- 1040 watts;
24V -- 2080 watts;
48V -- 4160 watt
|
12V -- 1300 watts;
24V -- 2600 watts;
48V -- 5200 watt
|
96V -- 5200 watt
|
MAX. Charge Current |
80A |
100A |
50A |
Charge Method |
Three-stage charge |
Three-stage charge |
Three-stage charge |
Low PV Voltage Protection |
Battery voltage+3V |
Battery voltage+3V |
Battery voltage+5V |
Over PV Voltage Protection |
150VDC |
150VDC |
300VDC |
DC Load Voltage |
Same with battery voltage |
Same with battery voltage |
Same with battery voltage |
MAX. DC Load Current |
80Amp |
100Amp |
50Amp |
ENVIRONMENT |
Operating / Storage Temperature |
-20℃ to +50℃ / - 40℃ to +70℃ |
-20℃ to +50℃ / - 40℃ to +70℃
|
-20℃ to +50℃ / - 40℃ to +70℃
|
GENERAL INFORMATION |
Communication |
RJ45 / RS485 / PC monitor/Wifi & APP |
- |
- |
Weight |
7.5 Kg |
8.2 Kg |
8.8 Kg |
Warranty |
36 months |
36 months |
36 months |
IP Level |
IP43 |
IP43 |
IP43 |
Cooling |
Natual cooling with an external heat sink |
- |
- |
Dimension(L×W×H) |
42.0× 28× 9.5cm |
42.0× 28× 9.5cm |
42.0× 28× 9.5cm |
Battery Type |
Li FePO4, AGM, GEL or Customized |
- |
- |
